品牌:温州博源

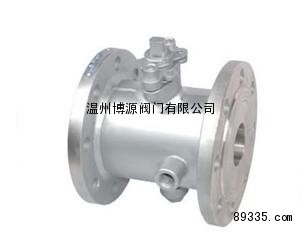

型号:BQ41F
规格:DN15-DN600
起订:1个
供应:1000个
发货:3天内
BQ41F-16C主要连接尺寸:
|
尺寸 |
in |
3/4" |
1" |
1-1/2" |
2" |
3" |
4" |
6" |
8" |
|
DN |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
200 |
|
|
L |
mm |
117 |
127 |
165 |
178 |
229 |
254 |
292 |
330 |
|
H |
mm |
101 |
106 |
125 |
135 |
193 |
265 |
355 |
410 |
|
W |
mm |
160 |
160 |
230 |
230 |
400 |
650 |
1050 |
1050 |
|
E |
mm |
58.5 |
63.5 |
62.5 |
68 |
82 |
83 |
95 |
100 |
|
P |
in |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT1 |
|
法兰规格 |
mm |
40 |
50 |
65 |
80 |
150 |
200 |
250 |
350 |
BQ41F-25C 40C主要连接尺寸:
|
尺寸 |
in |
3/4" |
1" |
1-1/2" |
2" |
3" |
4" |
6" |
8" |
|
DN |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
200 |
|
|
L |
mm |
117 |
127 |
165 |
178 |
229 |
254 |
292 |
330 |
|
H |
mm |
101 |
106 |
125 |
135 |
193 |
265 |
355 |
410 |
|
W |
mm |
160 |
160 |
230 |
230 |
400 |
650 |
1050 |
1050 |
|
E |
mm |
58.5 |
63.5 |
62.5 |
68 |
82 |
83 |
95 |
100 |
|
P |
in |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT1 |
|
法兰规格 |
mm |
40 |
50 |
65 |
80 |
150 |
200 |
250 |
350 |
BQ41F-150Lb主要连接尺寸:
|
尺寸 |
in |
3/4" |
1" |
1-1/2" |
2" |
3" |
4" |
6" |
8" |
|
DN |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
200 |
|
|
L |
mm |
117 |
127 |
165 |
178 |
229 |
254 |
292 |
330 |
|
H |
mm |
101 |
106 |
125 |
135 |
193 |
265 |
355 |
410 |
|
W |
mm |
160 |
160 |
230 |
230 |
400 |
650 |
1050 |
1050 |
|
E |
mm |
58.5 |
63.5 |
62.5 |
68 |
82 |
83 |
95 |
100 |
|
P |
in |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT1 |
|
法兰规格 |
in |
1-1/2" |
2" |
2-1/2" |
3" |
6" |
8" |
10" |
14" |
BQ41F-300Lb主要连接尺寸:
|
尺寸 |
in |
3/4" |
1" |
1-1/2" |
2" |
3" |
4" |
6" |
8" |
|
DN |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
200 |
|
|
L |
mm |
117 |
127 |
165 |
178 |
229 |
254 |
292 |
330 |
|
H |
mm |
101 |
106 |
125 |
135 |
193 |
265 |
355 |
410 |
|
W |
mm |
160 |
160 |
230 |
230 |
400 |
650 |
1050 |
1050 |
|
E |
mm |
58.5 |
63.5 |
62.5 |
68 |
82 |
83 |
95 |
100 |
|
P |
in |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT3/4 |
NPT1 |
|
法兰规格 |
in |
1-1/2" |
2" |
2-1/2" |
3" |
6" |
8" |
10" |
14" |
